Can Baler

Description

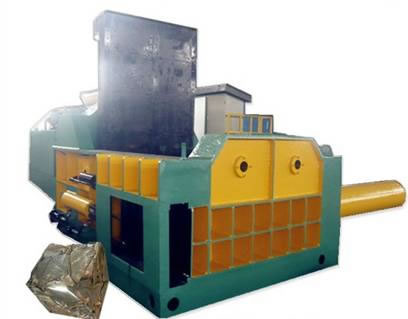

The Can Baler is a kind of baling machine that is designed to recycle and compress solid waste like cans. This baler presses the cans into blocks directly without the help of the labor. Besides this, it saves storing space, amounting for eighty percent. Hence, the Can Baler can save transportation cost, and at the same time makes it convenient to protect environment and recycle waste.

Features

1. The Can Baler works under the hydraulic system. It adopt manual or PCL automatic model.
2. Three types of feeding are available. They are turn-out, push-out and forward-out.
3. The balers are installed without the foundation bolt. It can be powered by diesel fuel when there is no electricity available.
4. The pressing force is between 63 tons and 400 tons and the baling capacity ranges from 0.5 tons to 20 tons per hour.

Advantages

1. The Can Baler can be motivated by hydraulic pressure. You can also choose manual type.
2. Three types of feeding are available. They are turn-out, push-out and forward-out. You can also use labor to take the bales.
3. The balers are installed without the foundation bolt. It can be powered by diesel fuel when there is no electricity available.

Types

Y81Q-1350, Y81T-2500

Specifications

No.	Specifications
Model			Y81T-2500
1	Main Cylinder	Type	YG340/220
		Pressure	2500 KN
		Stroke	1820 mm
		Qty.	1 pc
2	Plate Cylinder	Type	YG180/120
		Pressure	635 KN
		Stroke	1635 mm
		Qty.	1 pc
3	Bales Out Door Cylinder	Type	YG160/105
		Pressure	500 KN
		Stroke	580 mm
		Qty.	1 pc
4	Ejecting Cylinder	Type	YG220/160
		Pressure	950KN×2
		Stroke	1500 mm
		Qty.	2 pc
5	Chamber Size			2000×1400×900 mm
6	Bales Size (L×W×H;H is adjustable)			500×500×H mm
7	Hydraulic Pressure			25 Mpa
8	Cycle Time			~160 s
9	Motor	Type		Y200L2-6
		Rated Power		22 KW
		Rated Speed		970 rpm
		Qty.		2 pc
10	Pump	Type		160YCY14-1B
		Flow Rate		160 ml/r
		Rated Pressure		31.5 MPa
		Qty.		2 pc
11	Machine Weight			21 ton
