Straw Square Baler

Description

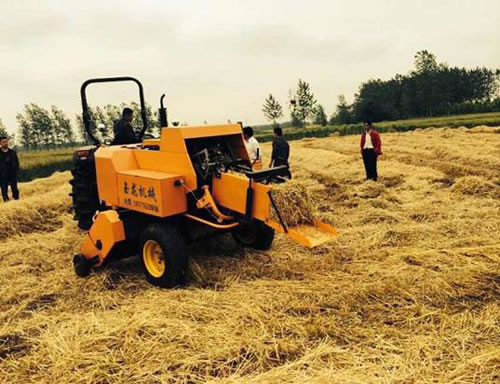

The Straw Square Baler is a piece of hydraulic machinery that compresses the straw into blocks without polluting the environment. Owing to this, it is convenient to store, transport and utilize straw. Currently, the balers are widely used in agriculture and animal husbandry. Facts have proved that the baler makes difference in environment and resources.

Advantages

1. The machines are equipped with Germany imported bearing. This greatly improves the lifespan of the machine.
2. The machines are equipped with Germany imported knotting mechanism, which greatly enhances the working efficiency and decrease the bale off probability.

Buying Tips

There are two types of agricultural square balers. For the cutting-off crops, the pick-up type and crusher type are available. Besides, the crusher type baler is suitable for shredding crops into pieces with the size of 100 mm.

Types

Crusher Type Square Balers: MAC-1950C
Pick-up Square Hay Balers: MAC-1950,MAC-1550

Parameters

Model	MAC-1950C
Baling Chamber
Chamber Cross Section Size	360×460 mm
Bale Length	310-1300 mm
Bale Density	120-180 kg/m3
Shredding Part
Working Width	1950 mm
The Height for Stubble Left	<50 mm
Shredding Size	<100 mm
Blades QTY	48 pc
Overload Protection	Belt Creep
Feeding Screw
Screw Size	DIA320
Rotating Speed	313 r/min
Transmission	Chain Drive 08B-1-100
Overload Protection	Belt Creep
Feeder
Structure	Crank Rocker Arm
Feeding Forks	4 pc
Transmission	Chain drive 12A-1-116
Overload Protection	Safety Bolt
Compressing Device
Working Cycle Time	100 t/min
Stroke	550 mm
Strapping Info
Strapping Lines	2Line
Strapping Rolls	6 pc
Machine Overall Information
Machine Overall Dimension	4600×2400×1750 mm
Machine Weight	2350 kg
Tractor Size Required
Power	>75 hp
PTO Speed	540 rpm
Tire Size	10-15 9.0x15.3
Tire Inflation Pressure	300 kPa
