Cardboard Balers

Description

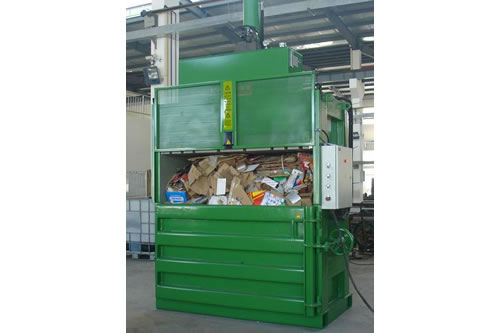

The Cardboard Baler is a kind of baler that is designed to press and recycle materials like waste corrugated cardboard, cartons, newspaper, plastic film (PE or PP plastic). With automatic wide door, it is easy to feed materials. Besides this, the baler can eject bales automatically, which greatly improves efficiency.

Parameters

Model	MVC300A11070	MVC400A12080	MVC500A15076
Pressure	30 ton	40 ton	50 ton
Feed Opening Size (L×W)	1100×500 mm	1200×500 mm	1500×500 mm
Chamber Height	1400 mm	1500 mm	1500 mm
Bales Size (L×W×H;H is adjustable)	1100×700×(500-900) mm	1200×800×(600-1000) mm	1500×760mm×(600-1000) mm
Bales Weight	150-250 kg	200-400 kg	300-500 kg
Power	5.5 kw	7.5 kw	11 kw
Machine Weight	1900 kg	2200 kg	2800 kg
Machine Overall Dimension	1500×1050×2900 mm	1600×1150×3000 mm	2000×1150×3100 mm
