Bottle Baling Press

Description

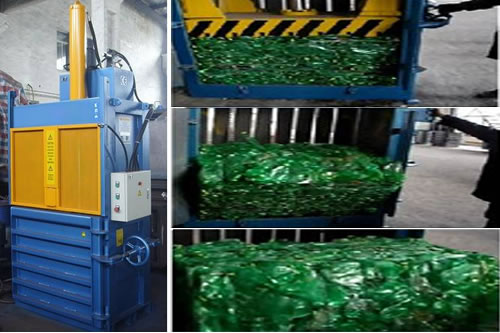

The Bottle Baling Press is a kind of baler that is designed to compress and recycle hollow materials like cans, PET bottles and oil tanks. The baler is equipped with long oil cylinder, which ensures that even the bottom of the bottles can be pressed thoroughly. Besides this, it can eject bales automatically. This greatly improves working efficiency.

Parameters

Model	MVB300A8060	MVB400A10060	MVB500A11070
Pressure	30 ton	40 ton	50 ton
Feed Opening Size (L×W)	800×500 mm	1000×500 mm	1100×500 mm
Chamber Height	1500 mm	1500 mm	1500 mm
Bales Size (L×W×H;H is adjustable)	800×600×(200-1000) mm	1000×600×(300-1000) mm	1100×700×(300-1000) mm
Bales Weight	30-120 kg	60-180 kg	90-270 kg
Power	5.5 kw	7.5 kw	11 kw
Machine Weight	1400 kg	1700 kg	1900 kg
Machine Overall Dimension	1280×850×3300 mm	1480×1000×3400 mm	1600×1100×3500 mm
