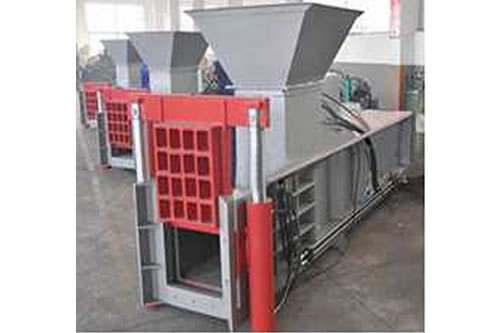

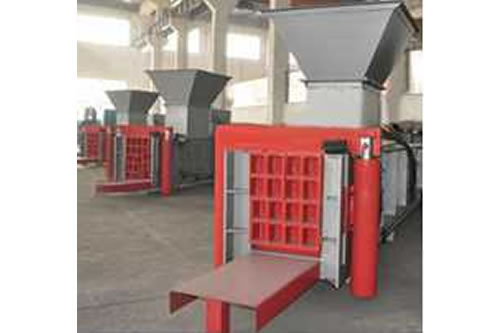

Briquetting Press

Application

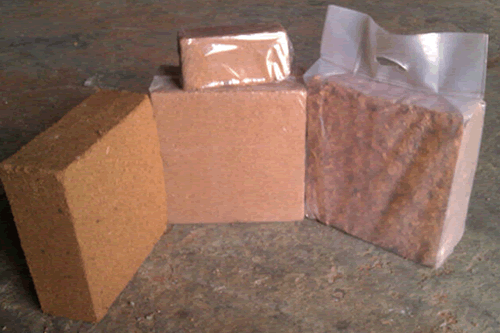

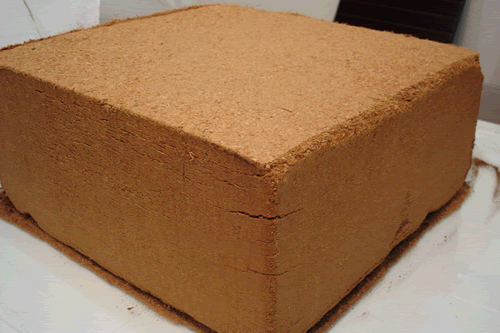

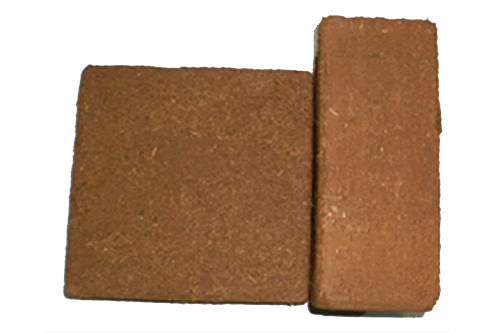

The Briquetting Press is a kind of baler that is specially designed to briquette coco peat, saw dust or similar materials. It makes it convenient to transport and thus save the transportation cost. The size and weight of the bale can be customized for you.

Parameters

Model	MB-3030	MB-3535	MB-4848
Press Force	80 ton	150 ton	200 ton
Motor Power	18.5 kw	22 kw	30 kw
Feed Opening Size (L×W)	450×300 mm	500×350 mm	700×480 mm
Bale Size (L×W×H)	300×300×280 mm	350×350×280 mm	480×480×330 mm
Bale Weight (Moisture/depend on the moisture of the raw material )	10 kg	15kgs	30kgs
Machine Weight	2800 kg	3000 kg	4000 kg
Machine Overall Dimension (mm)	4100×900×1300	4200×950×1400	4260×1100×1800
