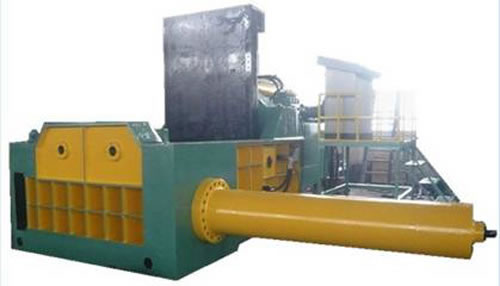

Hydraulic Metal Baler

Description

The Hydraulic Metal Baler is applicable in steel plants, recycling companies, smelting industry. The baler is designed to press all metal leftover, steel shavings, steel scraps, aluminum scraps and cooper scraps into qualified burdens of different shapes like rectangle, cylinder and octagon. In this way, the cost in transportation and smelting can be greatly saved.

Features

1. Motivated by hydraulic pressure, the baler operates smoothly and safely.
2. The balers adopt manual or PCL automatic model.
3. Three types of feeding are available. They are turn-out, push-out and forward-out.
4. The balers are installed without the foundation bolt. It can be powered by diesel fuel when there is no electricity available.

Advantages

1. There is no foundation bolt for installation. It can be powered by diesel fuel when there is no electricity available.
2. Different types of forwarding out bales are available.
3. you can also choose air cooler and diesel engine.
4. Once you put the movable baler on the truck plate, it can move from yard to yard.

Types

Y81Q-1350, Y81T-2500

Specifications

No.	Specifications
Model			Y81T-2500
1	Main Cylinder	Type	YG340/220
		Pressure	2500 KN
		Stroke	1820 mm
		Qty.	1 pc
2	Plate Cylinder	Type	YG180/120
		Pressure	635 KN
		Stroke	1635 mm
		Qty.	1 pc
3	Bales Out Door Cylinder	Type	YG160/105
		Pressure	500 KN
		Stroke	580 mm
		Qty.	1 pc
4	Ejejecting Cylinder	Type	YG220/160
		Pressure	950KN×2
		Stroke	1500 mm
		Qty.	2 pc
5	Chamber Size			2000×1400×900 mm
6	Bales Size (L×W×H;H is adjustable)			500×500×H mm
7	Hydraulic Pressure			25 Mpa
8	Cycle Time			~160 s
9	Motor	Type		Y200L2-6
		Rated Power		22 KW
		Rated Speed		970 rpm
		Qty.		2 pc
10	Pump	Type		160YCY14-1B
		Flow Rate		160 ml/r
		Rated Pressure		31.5 MPa
		Qty.		2 pc
11	Machine Weight			21 ton
