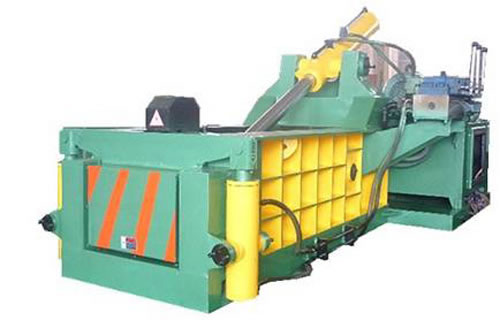

Metal Baling Machine

Description

The Metal Baling Machine is applicable in steel plants, recycling companies, smelting industry. The baler is designed to press all metal leftover, steel shavings, steel scraps, aluminum scraps and cooper scraps into qualified burdens of different shapes like rectangle, cylinder and octagon. In this way, the cost in transportation and smelting can be greatly saved.

Features

1. Motivated by hydraulic pressure, the balers operates smoothly and safely.
2. The balers adopt manual or PCL automatic model.
3. The balers are installed without the foundation bolt. It can be powered by diesel fuel when there is no electricity available.

Advantages

1. High Working Efficiency
With the hydraulic system, the Metal Baling Machine works in high efficiency. And the intensity of labor is reduced.
2. Low Transportation Cost
The Metal Baling Machine has compact structure and it is convenient to move and store it. Besides this, we can customize the baling needs of the customer, making it easy to transport. Thus, the cost in transportation can be greatly saved.
3. Low Labor Cost
It is easy to operate and the repair the baling machine. There is no foundation bolt for installation. Hence, you can save the labor cost.

Working Principle

First, put the materials into the container. Then the hydraulic cylinder begins to work. It presses the materials into metal blocks of all shapes.

Types

Y81Q-1350, Y81T-2500

Specifications

No.		Specifications
Model				Y81Q-1350
1	Main Cylinder		Type	YG250/160
			Pressure	1350 KN
			Stroke	1720 mm
			Qty.	1 pc
2	Plate Cylinder		Type	YG160/105
			Pressure	530 KN
			Stroke	1160 mm
			Qty.	1 pc
3	Bales Out Door Cylinder		Type	YG110/70
			Pressure	250 KN
			Stroke	260 mm
			Qty.	2 pc
4	Ejecting Cylinder		Type	N/A
			Pressure	N/A
			Stroke	N/A
			Qty.	N/A
5	Chamber Size			1400×600×600 mm
6	Bales Size (L×W×H;H is adjustable)			600×240×H mm
7	Hydraulic Pressure			25 Mpa
8	Cycle Time			~70 s
9	Motor		Type	Y200L2-6
			Rated Power	22 KW
			Rated Speed	970 rpm
			Qty.	1 pc
10	Pump		Type	160YCY14-1B
			Flow Rate	160 ml/r
			Rated Pressure	31.5 MPa
			Qty.	1 pc
11	Machine Weight			6 ton
