Agricultural Square Hay Baler

Description

The Square Hay Baler is a piece of farm machinery that is used to compress raked crop (such as hay, cotton, straw, or silage) into compact bales, because the bales are easy to handle, transport, and store. Several different types of balers are commonly used. Each can produce a different type of bale – rectangular (of various sizes), twining, strapping, netting, or wiring. Our Square Hay Baler mainly consists of Crusher Type Square Balers and Pick-up Square Hay Balers.

Parts of the Product

The Agricultural Square Hay Baler is made up of six parts. They are power transmission, pick-up part, feeding part, knotting part as well as rope storing box.

Application

1. The machine is mainly used to pick up baling straw in rice and wheat crops.
2. This machine provides favorable conditions for seeding under crop, which ensures that crops have a good harvest.
3. With this ideal baler, you can make use of straw resources comprehensively. It can avoid straw burning, which can improve working efficiency. Besides, it is also environmentally friendly.

Types

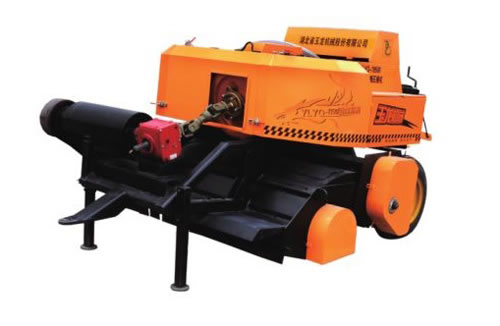

1. Crusher Type Square Balers: MAC-1950C

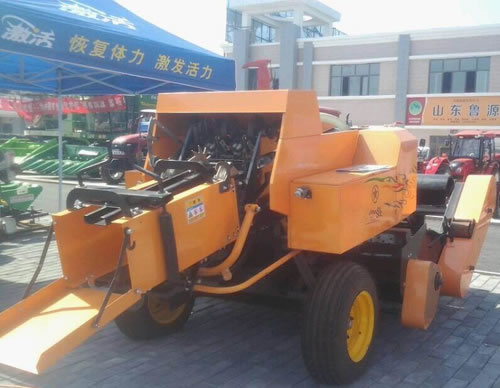

2. Pick-up Square Hay Balers: MAC-1950,MAC-1550

Parameters

Model	MAC-1950C
Baling Chamber
Chamber Cross Section Size	360×460 mm
Bale Length	310-1300 mm
Bale Density	120-180 kg/m3
Shredding Part
Working Width	1950 mm
The Height for Stubble Left	<50 mm
Shredding Size	<100 mm
Blades QTY	48 pc
Overload Protection	Belt Creep
Feeding Screw
Screw Size	DIA320
Rotating Speed	313 r/min
Transmission	Chain Drive 08B-1-100
Overload Protection	Belt Creep
Feeder
Structure	Crank Rocker Arm
Feeding Forks	4 pc
Transmission	Chain drive 12A-1-116
Overload Protection	Safety Bolt
Compressing Device
Working Cycle Time	100 t/min
Stroke	550 mm
Strapping Info
Strapping Lines	2 Line
Strapping Rolls	6 pc
Machine Overall Information
Machine Overall Dimension	4600×2400×1750 mm
Machine Weight	2350 kg
Tractor Size Required
Power	>75 hp
PTO Speed	540 rpm
Tire Size	10-15 9.0x15.3
Tire Inflation Pressure	300 kPa
